Cryogenic Valve Brochure

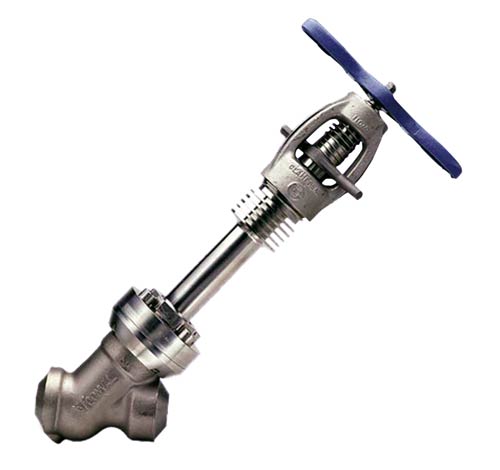

High pressure cryogenic service demands special attention to design and quality of material and fabrication. The CLAMPSEAL® delivers tight shutoff and operability through a wide temperature range and meets ASME B 31.3 requirements.
- Industry’s Lowest Life Cycle Costs
- Metal-to-Metal Pressure Seal Bonnet
- Single-piece Gland
- Tight Shut-off
- In-line Servicing
Standard Sizes
Sizes through 4″
Pressure Rating
ASME through 2500 #
ASME B31.3, ASME B16.34
Special pressure classes available
Standard Materials
Forged Stainless Steel SA 182-F316
Special materials available
Connections
SW and BW Ends
Special ends available
Design Features
Pressure Seal Bonnet
The simple and effective pressure seal bonnet provides ready access for servicing with no welds to cut or seal rings or gaskets to replace. The body-to-bonnet joint integrity is maintained through countless thermal cycles.
Single-piece Gland
In extreme environments, the simpler the design and the fewer the parts, the better. The durable, single-piece stainless steel gland contributes to the longevity of the cryogenic valve.
Axial-Loaded Packing System
The Axial design ensures tight concentricity, which eliminates side loading of the packing and minimizes wear forces on the trim components. This feature is critical for superior valve performance.
Pressure-Actuated Backseat
The Clampseal® pressure-actuated backseat provides maximum valve integrity by ensuring a positive internal stop for the valve stem and disc assembly. The pressure actuated backseat also extends packing life by securely isolating the packing from the pressure when the valve is fully open.
Rapid In-Line Renewability
The CLAMPSEAL® Valve is much easier to renew than anything else on the market. The CLAMPSEAL® Valve line provides a modular solution to rising maintenance expenses. Low acquisition cost is not as important as low cost over the serviceable life of a valve. Maintaining a Conval valve is far easier and much less costly than replacing a competitor’s valve.
